TF01 Exterior Soffit Dentil

Continue Shopping
Description
Available Online Available In Store

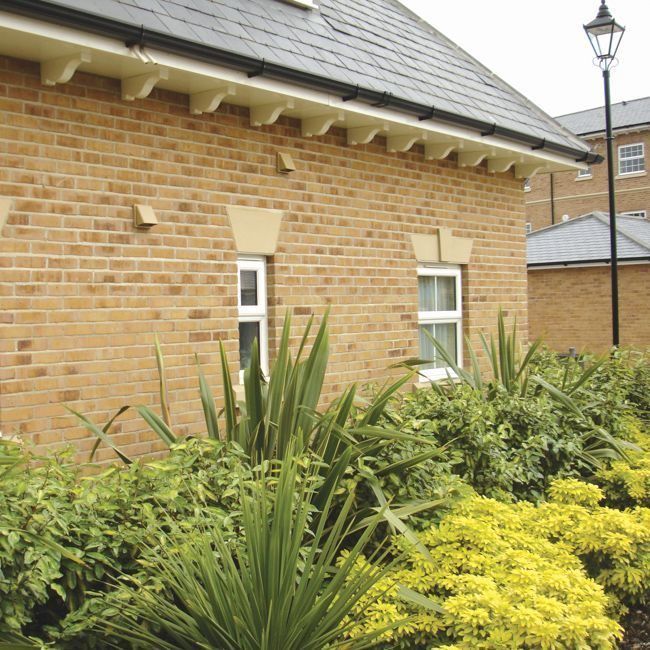

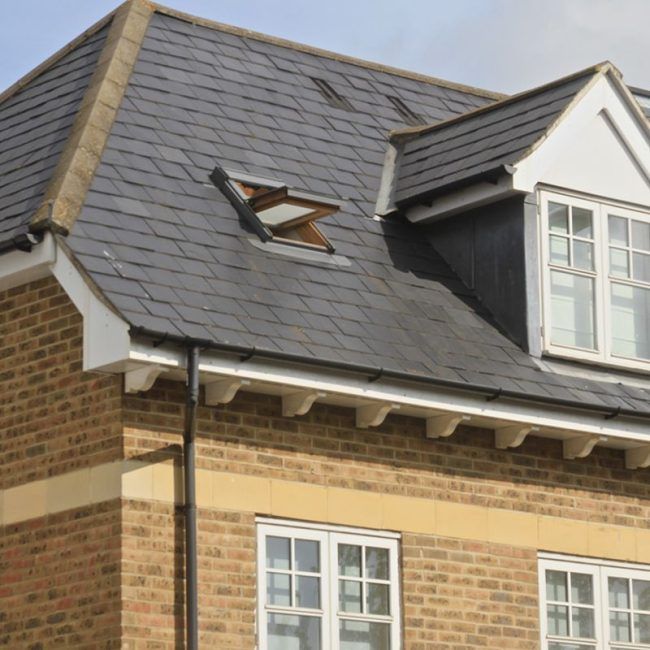

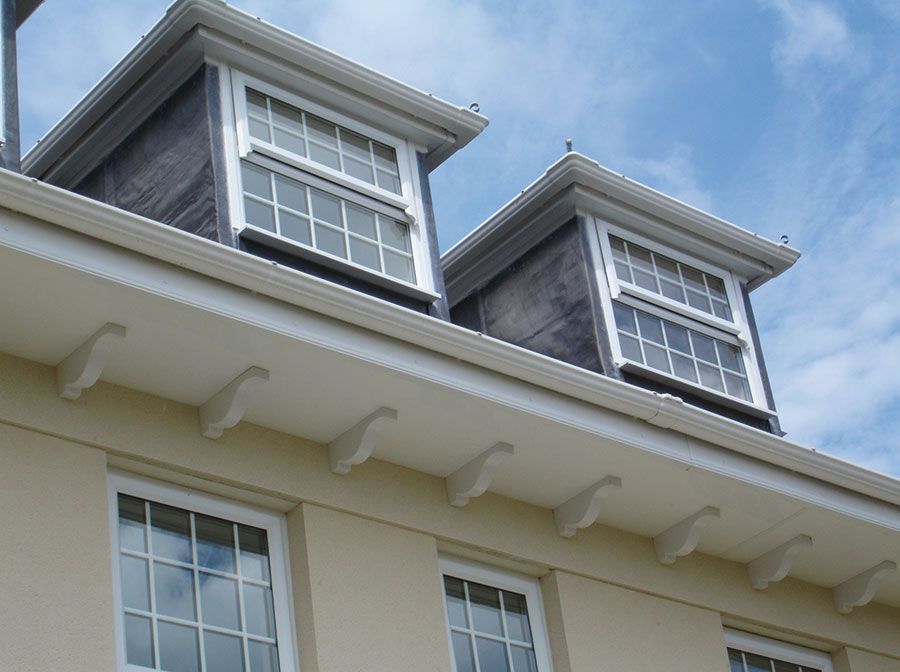

Plain dentil / corbel block for exterior use.  This Victorian style, exterior, dentil moulding can be used to decorate underneath an eaves overhang or to finish the soffit of a gable end. The Orac TF01 dentil can be easily installed in new build properties or as part of a refurbishment of older properties.  This style of dentil is perfect for re-creating a traditional Victorian look to your property.

Always ensure the size you are choosing suits the projection of the soffit.  This would suit a soffit with a projection of at least 40cm. This item is sprayed with a white automotive paint finish but can also be painted to suit colour scheme of building.

The Orac TF01 soffit dentil moulding comes complete with a built in footplate, and can be secret fixed using 2 galvanised screws (not supplied) before felt and battening your roof.  TF01 dentils are typically spaced at 600mm centres, but existing dwellings may dictate otherwise.

If you are looking to install these on a New Build site please ensure they are ordered before the roof is tiled and battened, to facilitate a secret fix installation.



Easy to install and maintenance free.

Product Size – 7.7cm wide x 12.3cm high x 35cm projection.

Material – Lightweight Polyurethane with white RAL 9003 exterior grade automotive paint finish

TF01 Installation Guide



TOP TIP – Each TF01 Dentil would normally be spaced out 60cm between fixing centres but you can choose the gap to suit the look of your project. You could also pair them together as can be seen in our Design Gallery image.

Product Enquiry

Product Enquiry

  • Hidden
  • This field is for validation purposes and should be left unchanged.
Downloads

Click on any of the files below to download...

Technical Drawing

Installation Guide
